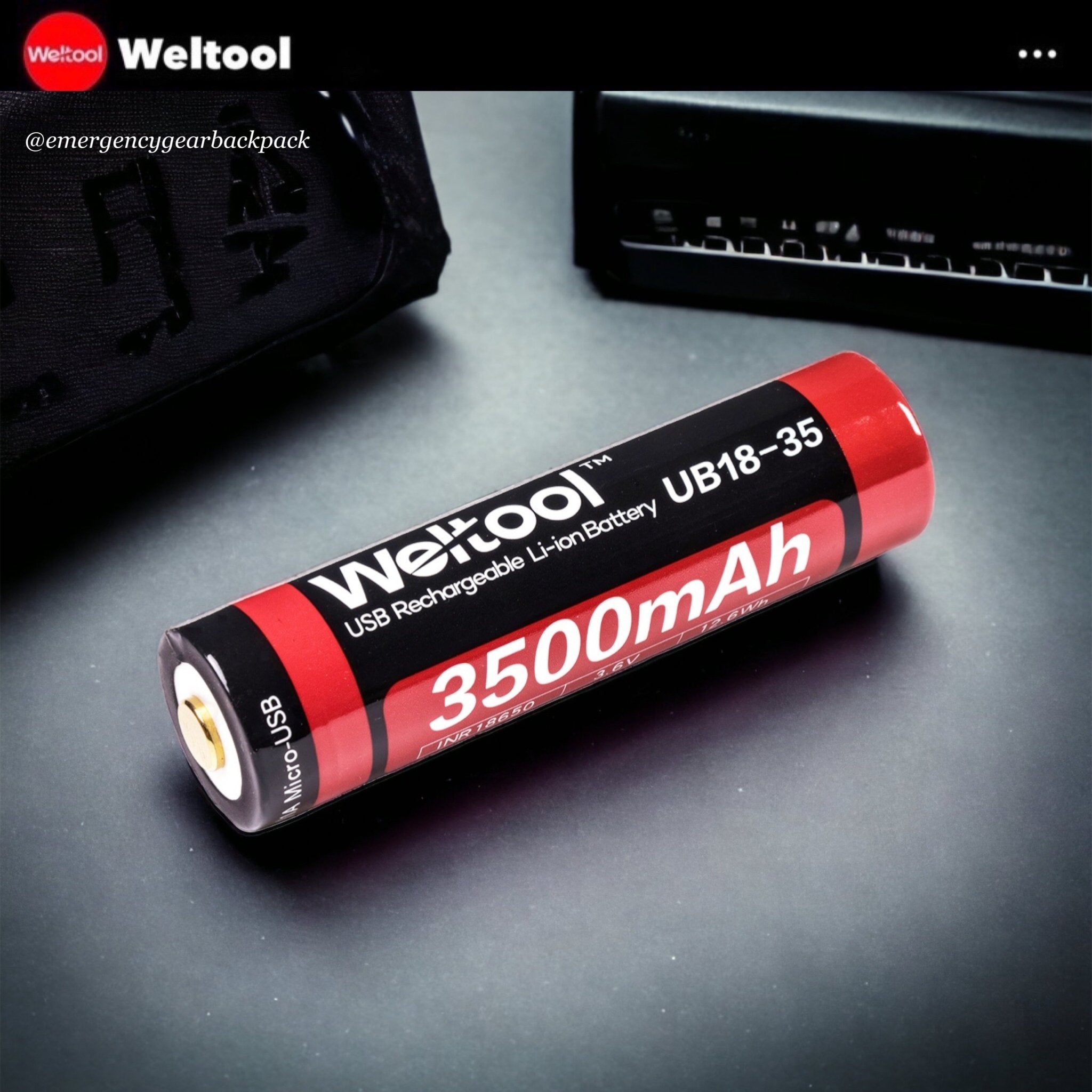

Weltool UB18-35 แบตเตอรี่ 18650 ความจุ 3500mAh พร้อมพอร์ตชาร์จ Micro USB ในตัว มีไฟสถานะแสดงการชาร์จ จ่ายกระแสสูงสุด 10A เหมาะสำหรับไฟฉายแรงสูง และอุปกรณ์ที่ต้องการกระแสสูงต่อเนื่อง
ภายในติดตั้งวงจรป้องกัน (Protection Circuit) แบบ Positive Pole Integrated พร้อมระบบป้องกันหลายชั้น ได้แก่ วาล์วระบายแรงดัน แผ่นกั้น micropore และ PTC Blocking ที่ช่วยควบคุมความปลอดภัยสูงสุดในระดับเซลล์ แบตเตอรี่สามารถใช้งานได้มากกว่า 500 รอบ โดยยังคงความจุไว้ไม่ต่ำกว่า 75%
Weltool UB18-35รองรับการชาร์จได้ทั้งจาก USB หรือเครื่องชาร์จมาตรฐาน ให้รอบการชาร์จมากกว่า 250 รอบ (ความจุเหลือ ≥70%) มีระบบตัดการทำงานเมื่อแบตเตอรี่ร้อนเกินหรือจ่ายกระแสเกิน พร้อมวาล์วระบายแรงดัน และโครงสร้าง micro-pore แยกเซลล์ภายใน ปลอดภัยสูงสุด
Specifications:
- Battery Type: NCR18650GA Li-ion
- Model: UB18-35
- Nominal Voltage: 3.6–3.7V
- Nominal Capacity: 3500mAh

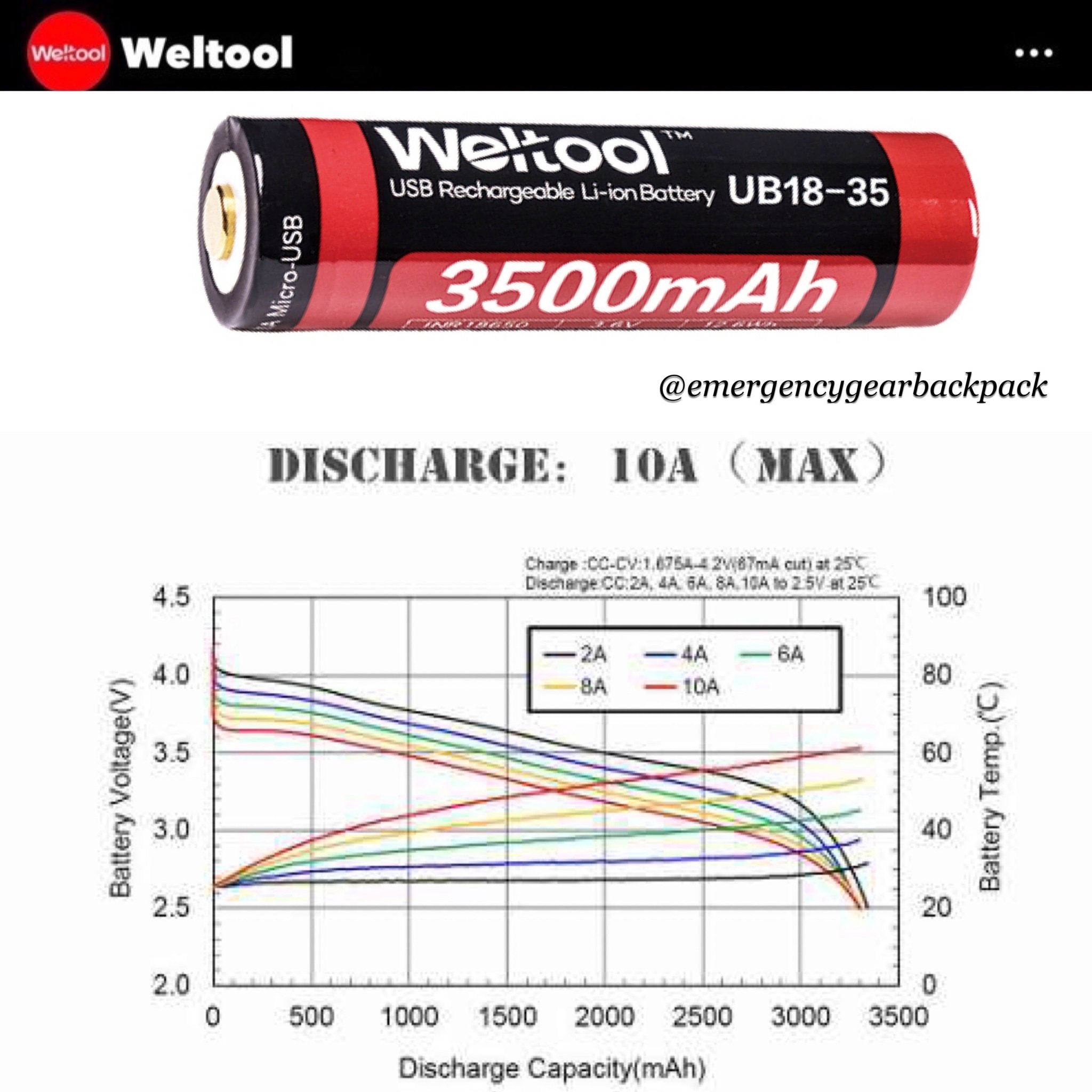

- Max Continuous Discharge Current: 10A
- Internal Resistance: ≤ 50mΩ
- Charging Current (USB): 0.8A
- Charging Current (Charger): 1A
- Charging Cutoff Voltage: 4.3V ± 0.05V
- Discharge Cutoff Voltage: 2.5V ± 0.1V
- Cycle Life: ≥500 cycles (75% capacity remaining)
- Status Indicator: Red (Charging), Blue (Charged)
- Charging Temperature: 10℃ to 45℃
- Discharging Temperature: 15℃ to 60℃
- Storage Temperature: -15℃ to 50℃
- Size: Ø18.6 ± 0.2 mm × 70 ± 0.2 mm
- Weight: 49.7 ± 0.05 g
- Certifications: CE, RoHS

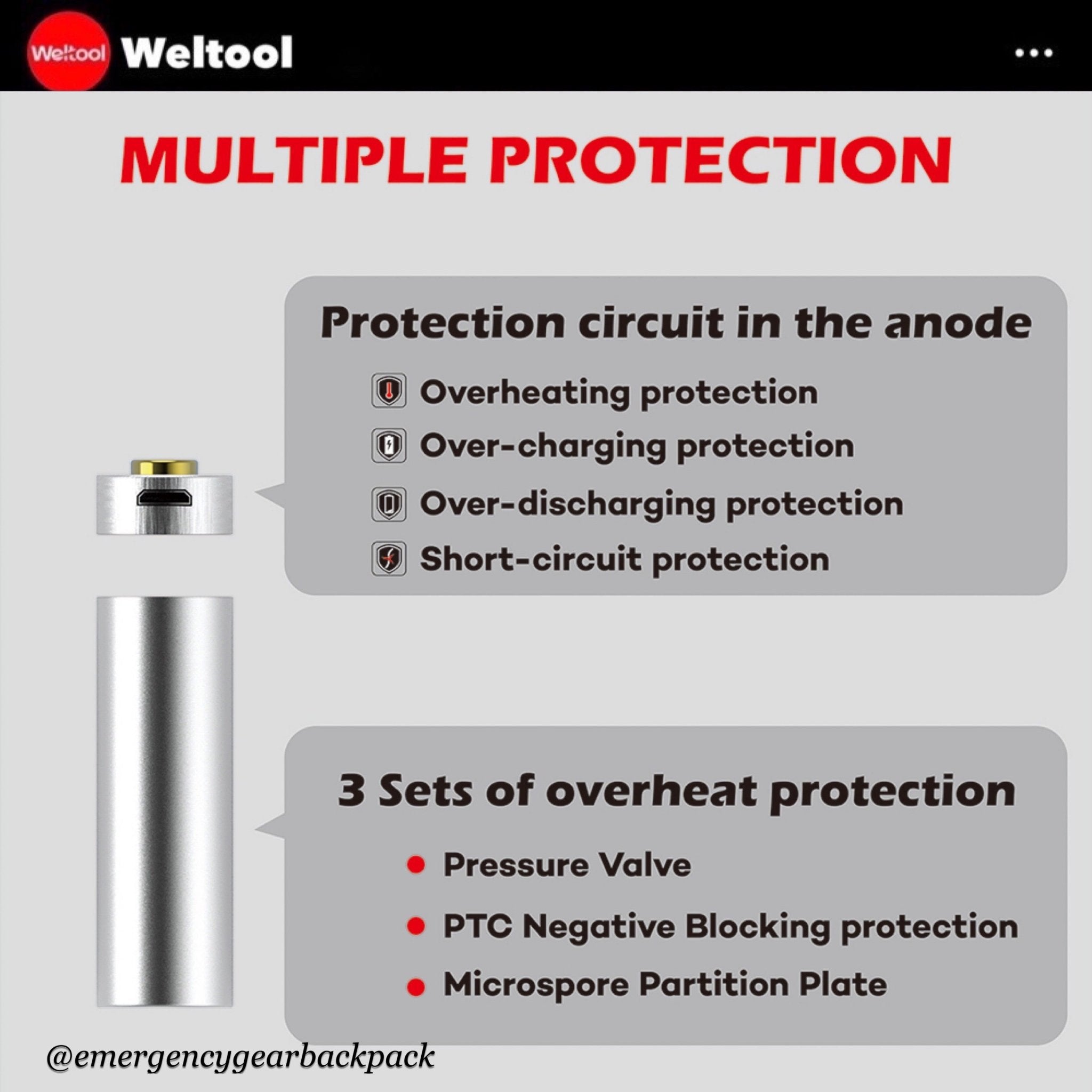

Safety Protection Circuit Board:
- Integrated anode-side protection circuit

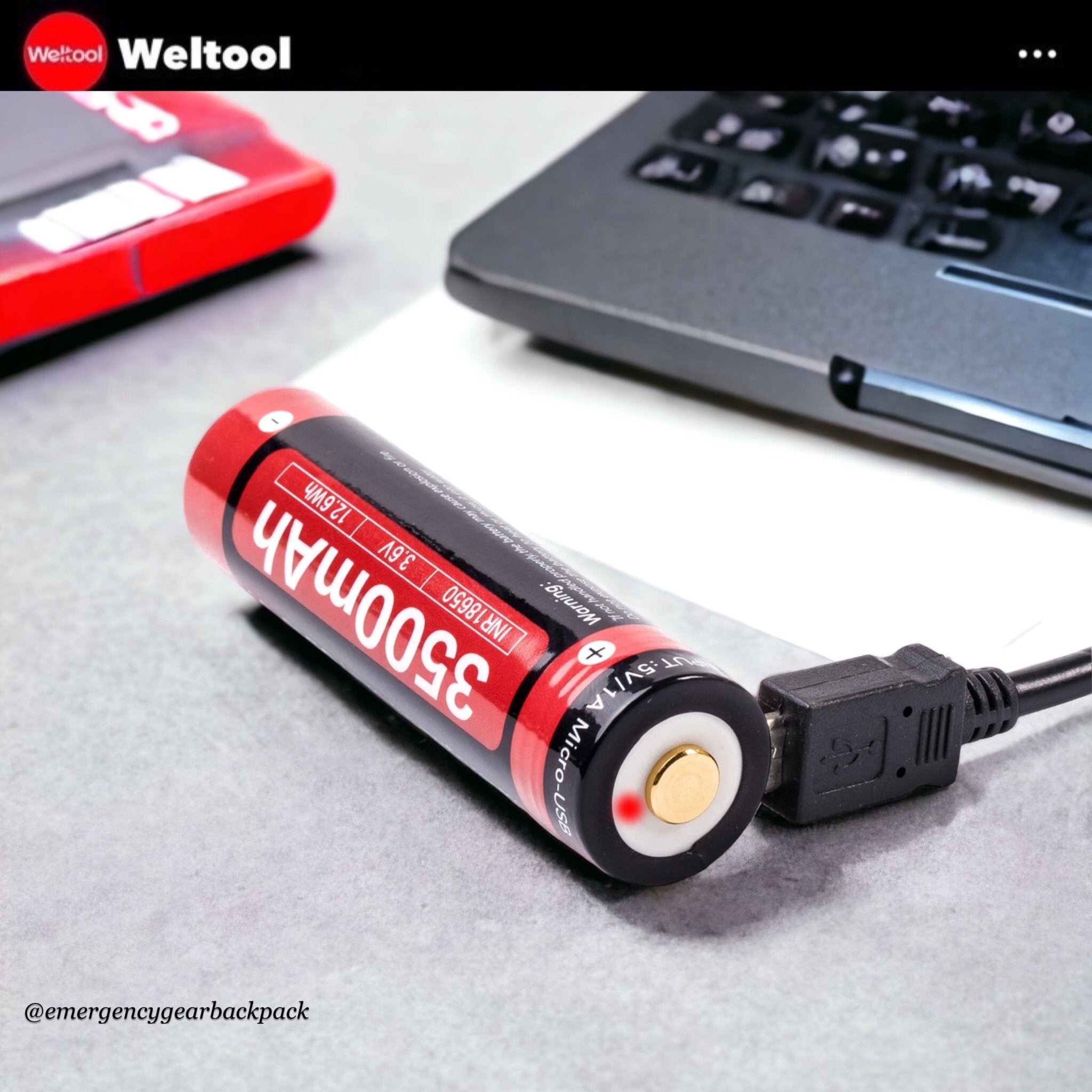

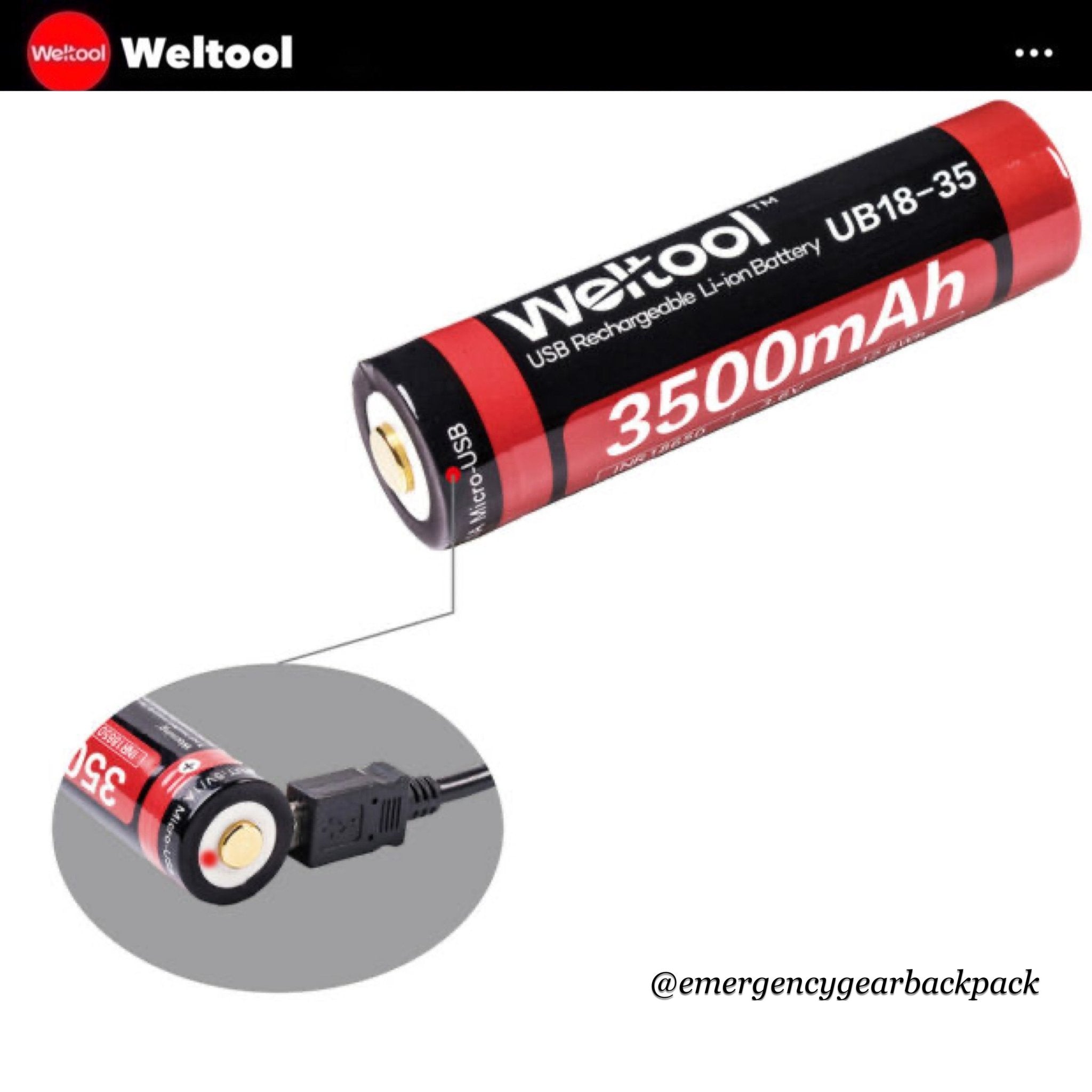

- Built-in Micro-USB charging port with indicator LEDs
- High-quality protection IC controls charge/discharge and prevents faults
- Explosion-proof pressure relief valve
- Micropore insulating partition to prevent internal short circuits
- PTC Blocking protection at negative pole for thermal regulation

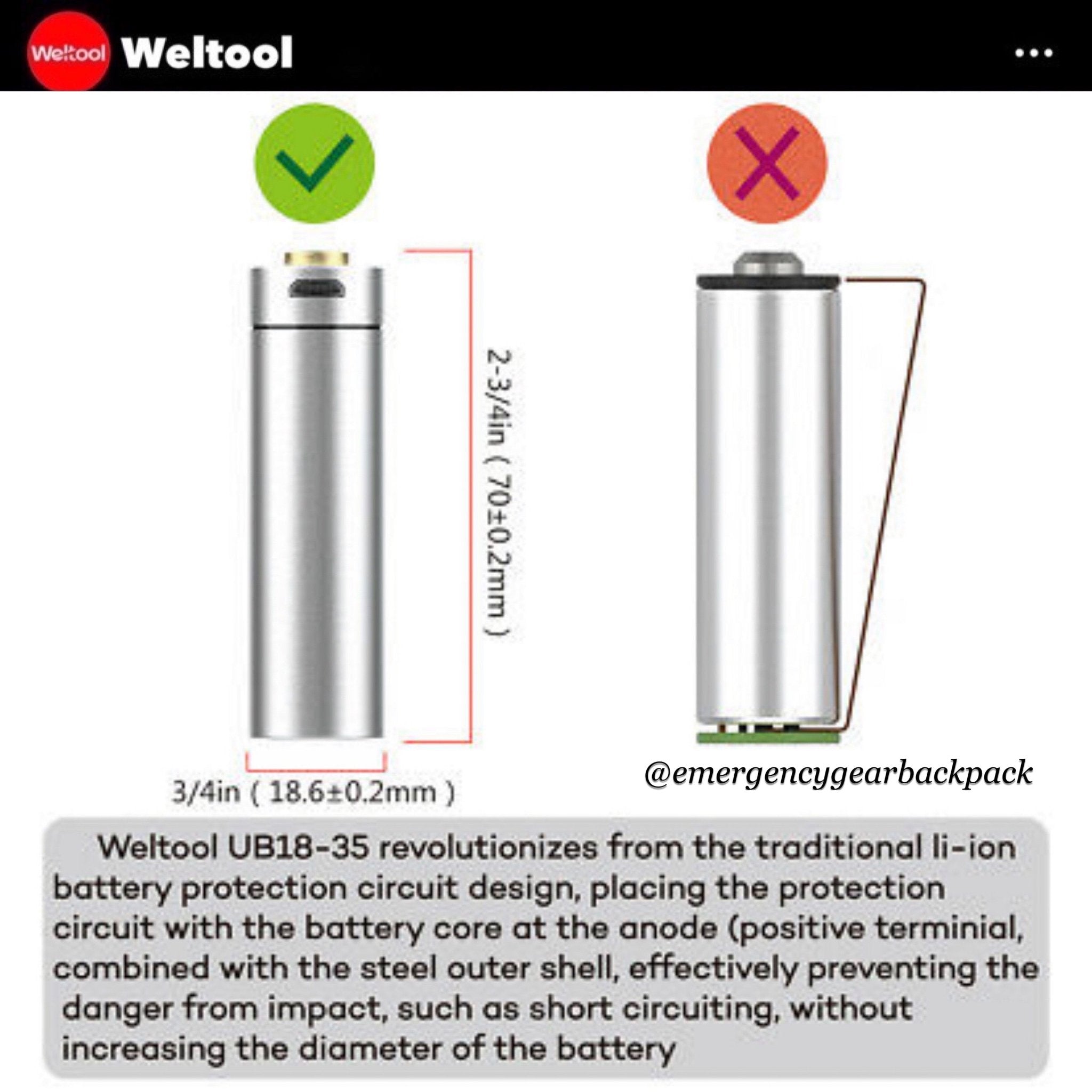

- PCB embedded in top terminal to maintain standard 18650 diameter
Protection Features:
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Short-circuit protection
- Thermal protection
- Gas pressure relief system
- Voltage regulation between 2.5V–4.3V
- Cutoff when discharge current or temperature exceeds safety threshold
