Weltool QM8 Quick Release Mount Clamp

Weltool QM8 Quick Release Mount Clamp

Specification:

Material : 6061 Aerospace Aluminum alloy with anodization
Dimension : 79.8 mm x 42.6 mm x 25 mm
Weight : ≤ 68 grams

QM8 allows for different diameters between the upper and lower clamps (i.e. upper clamp holds 25 mm, lower clamp holds 32 mm)
The diameter of instruments held can vary from 18 mm – 30 mm (the flashlight exposed tube body should be at least 25mm.)

Operating Steps

• UP to loose for adjusment
• Twist to adjust
• Down to lock

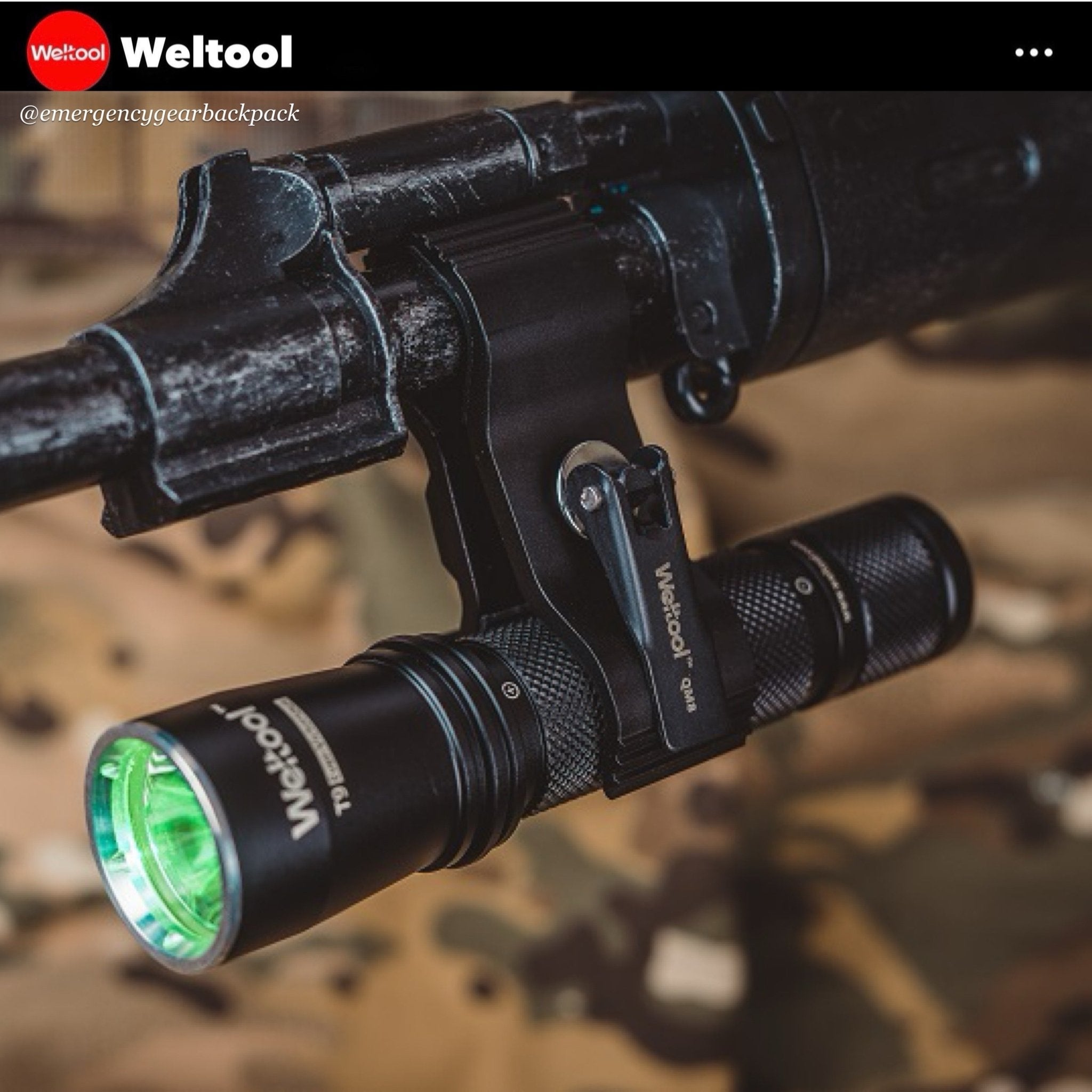

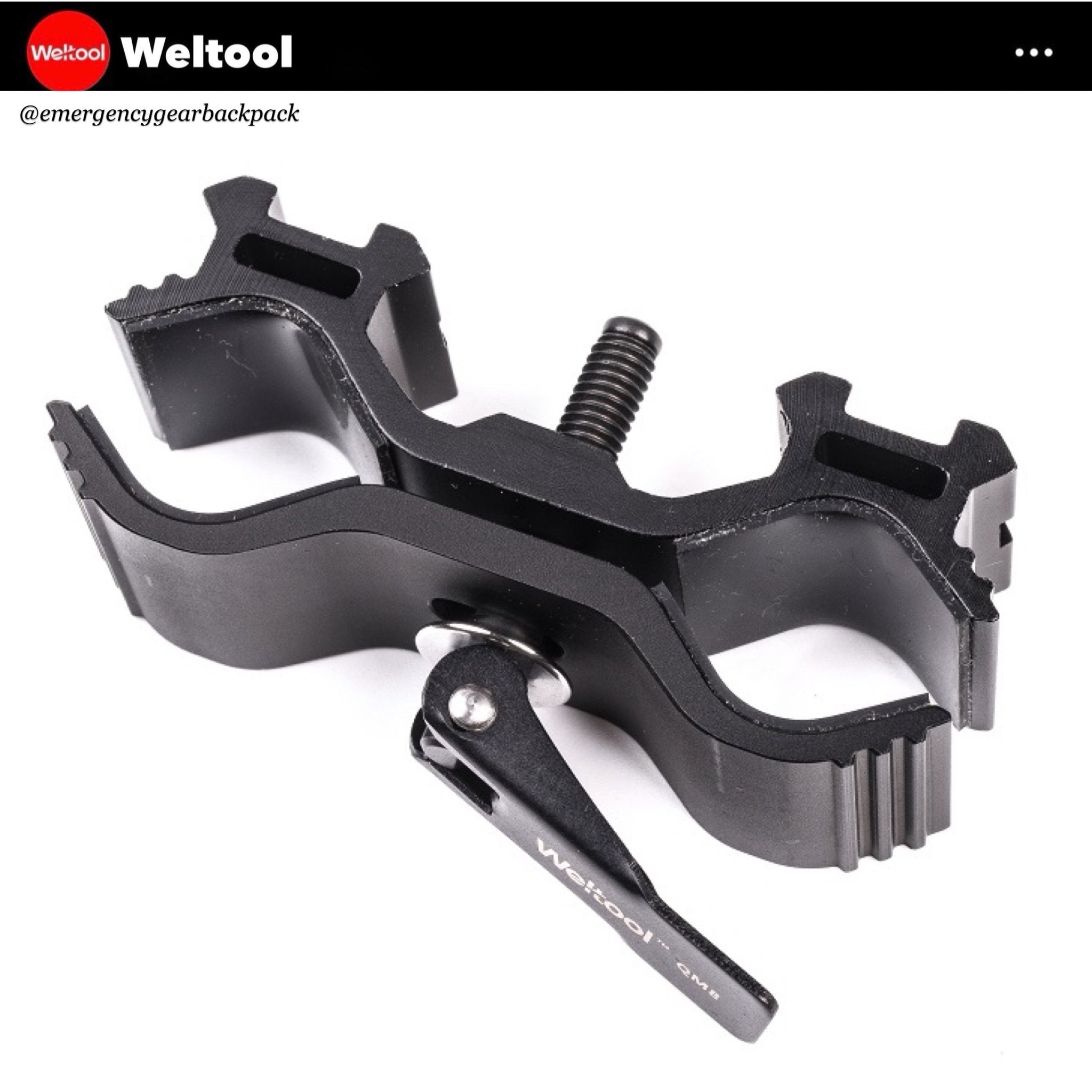

• Quick-Detach (QD) toggle can quickly install and remove the Light Holder from the barrels or scopes. The QD toggle can also loosen and tighten the clamps by rotating the toggle on its axis.

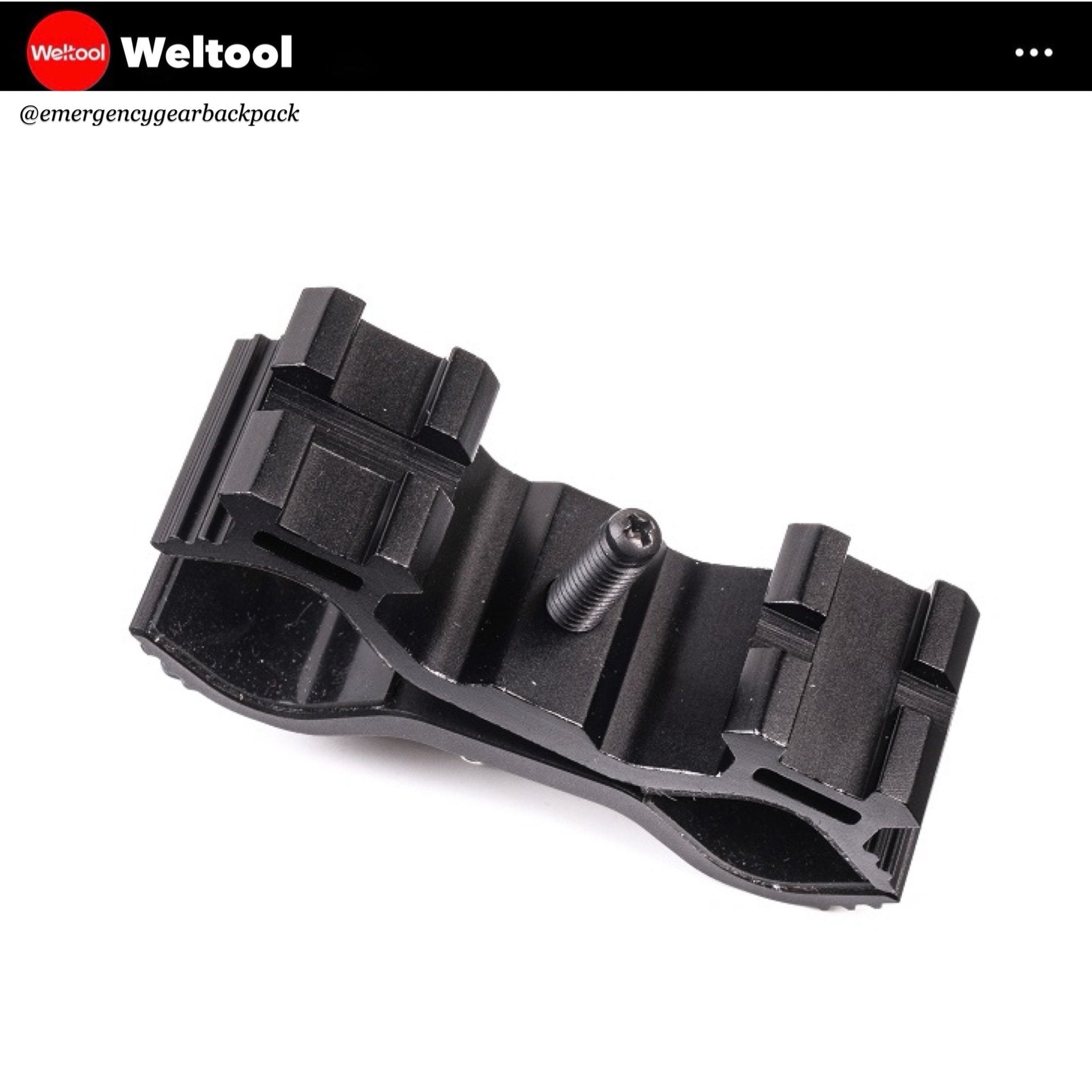

• Equipment Rails are installed on the side of the Light Holder for any compatible component installation.

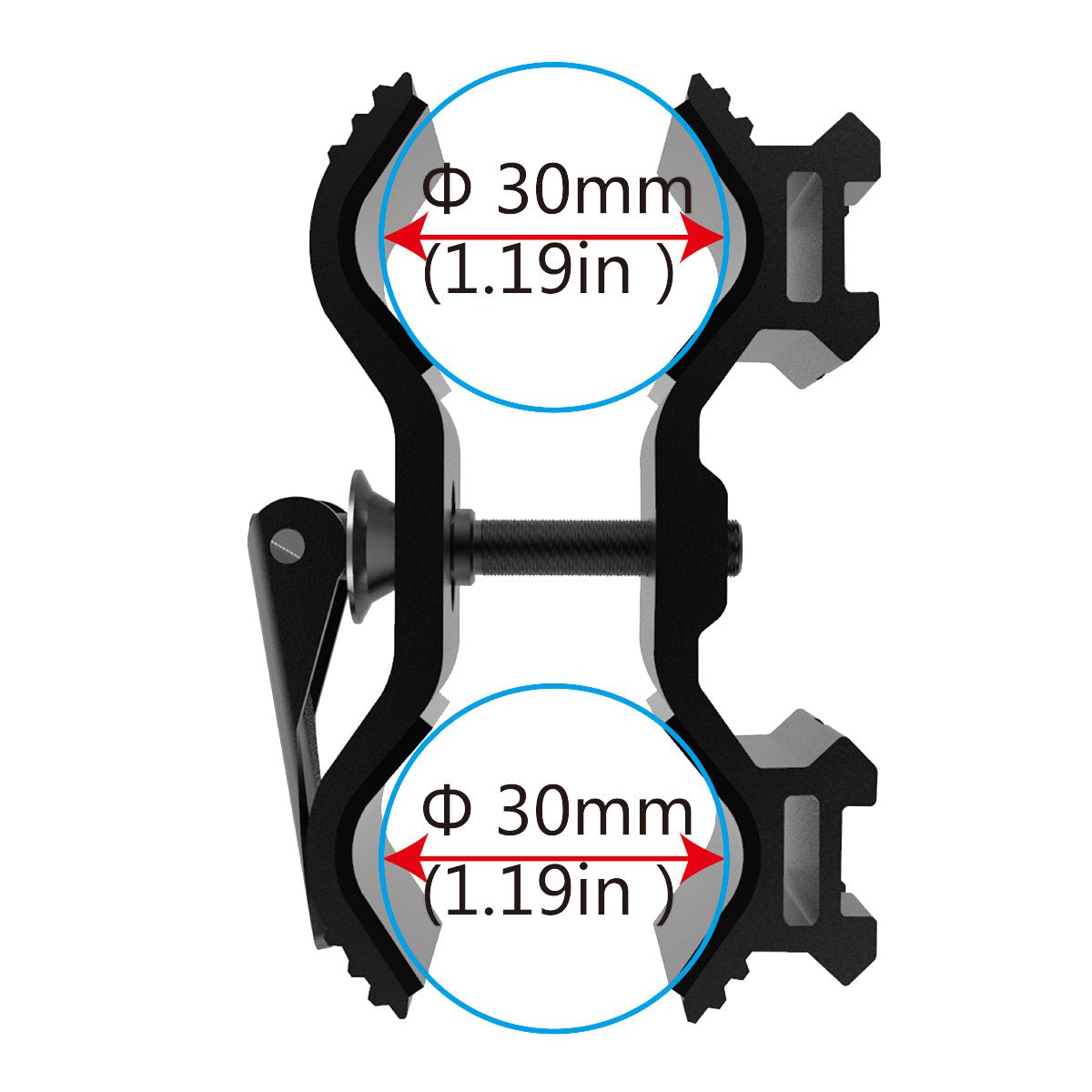

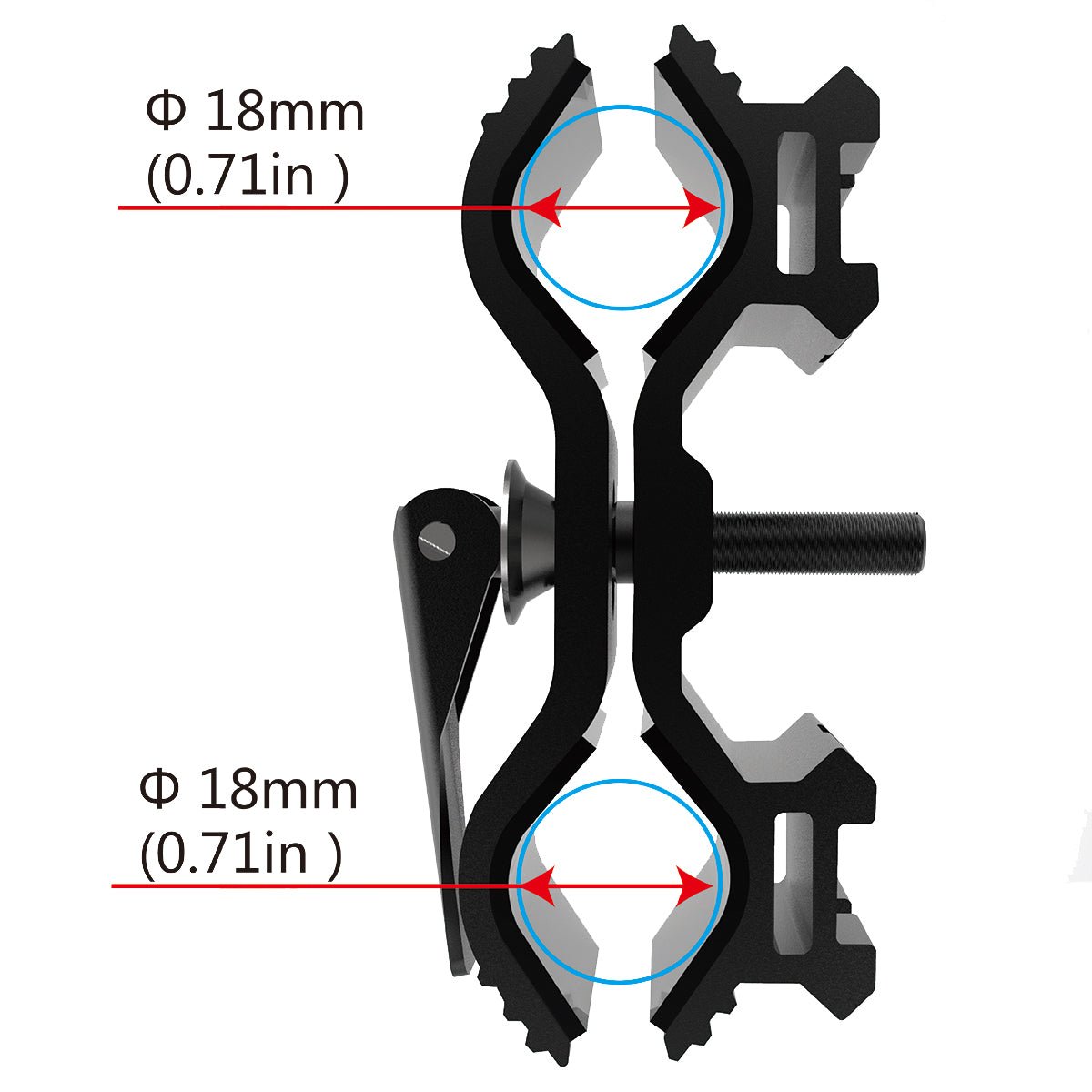

• When the adjusting screws are fully tightened, the clamps may hold up to 18 mm, fully opened, the clamps may hold up to 30 mm.
