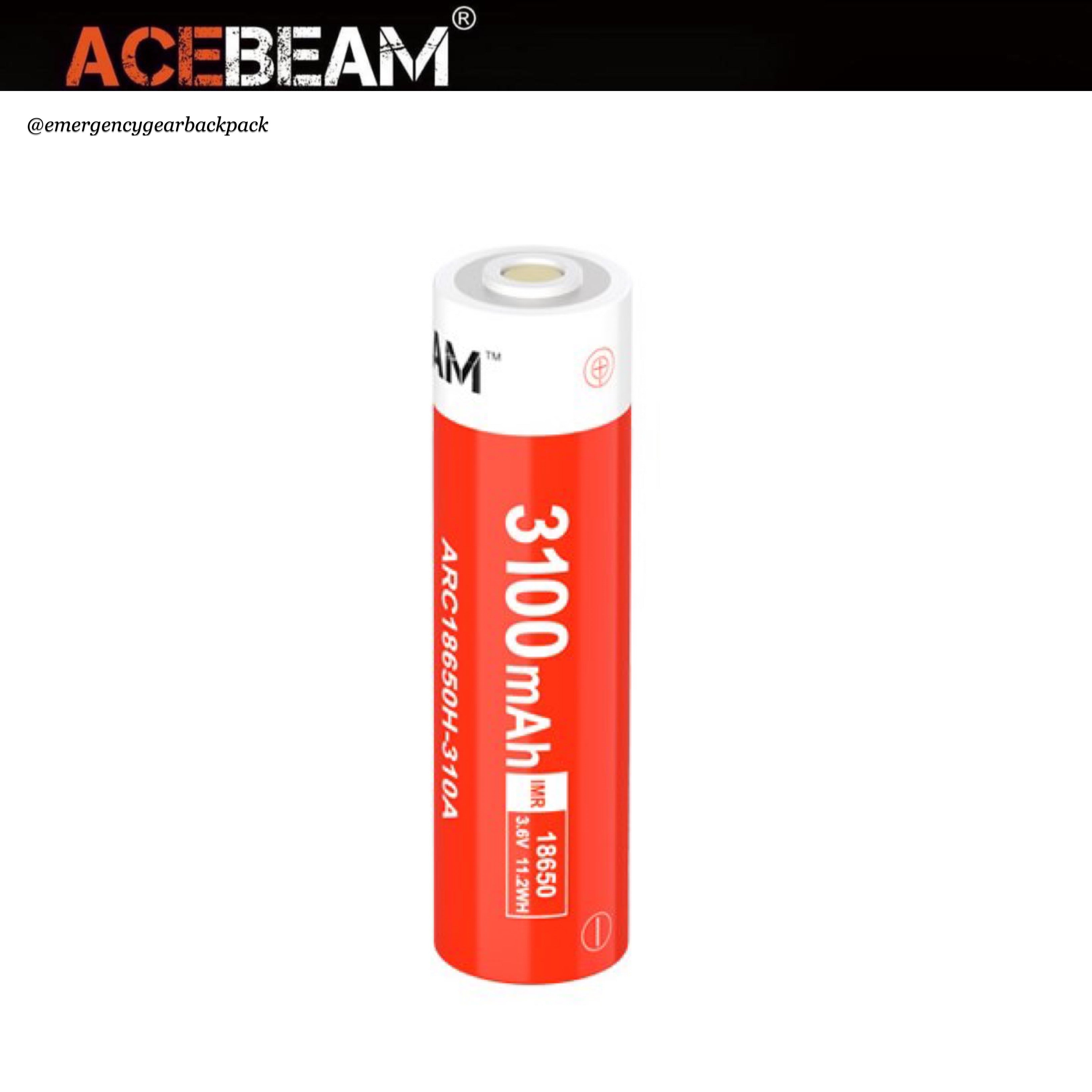

ACEBEAM P15 Customized 18650 3100mAh Battery

Description

แบตเตอรี่ ACEBEAM ARC18650H-310A IMR18650 3100mAh 3.6V 11.2WH สำหรับไฟฉาย ACEBEAM P15  จ่ายกระแสไฟที่ 20A  มีขั้วบวก ขั้วลบอยู่ในด้านเดียวกัน  (+/−  same-side terminal)

มีวงจรป้องกัน (Internal PCB Protected) ควบคุมการทำงานของระบบ  ป้องกันการลัดวงจร ตัดการทำงานของแบตเตอรี่ เมื่อแรงดันไฟสูงเกิน 4.3±0.05V หรือแรงดันไฟในแบตเตอรี่ลดต่ำกว่า 2.5±0.1V

แบตเตอรี่ติดตั้ง IC CHIPS MOSFETS x 4 ชุด (metal–oxide–semiconductor field-effect transistor) ควบคุมการจ่ายกระแสไฟในปริมาณมาก เพื่อให้อุปกรณ์ทำงานได้ประสิทธิภาพสูงสุด



คุณสมบัติ:

  • แบตเตอรี่ออกแบบสำหรับไฟฉาย Acebeam P15 Defender ชาร์จไฟผ่านตัวไฟฉาย
  • ACEBEAM ARC18650H-310A IMR18650 3100mAh 3.6V 11.2WH จ่ายกระแสไฟที่ 20A
  • แบตเตอรี่มีขั้วบวก ขั้วลบอยู่ในด้านเดียวกัน (+/−  same-side terminal)
  • มีวงจรป้องกัน (Internal PCB Protected) ตัดการทำงานของแบตเตอรี่ เมื่อค่าแรงดันไฟสูงเกิน 4.3±0.05V หรือแรงดันไฟในแบตเตอรี่ลดต่ำกว่า 2.5±0.1V
  • ใช้ Core Cell คุณภาพสูงของ Samsung
  • ค่าความต้านทานในแกนเซลล์ (Internal Resistance) ≤50mΩ
  • อุณหภูมิระหว่างการชาร์จ10-45℃
  • อุณหภูมิระหว่างการใช้งานกับไฟฉาย: 15-60℃
  • มิติ : φ 18.6±0.3 mm ความยาว 69.4±0.3mm
  • น้ำหนัก: 49g
  • มาตรฐาน CE และ RoHs





  • The ACEBEAM customized battery has the same positive and negative polarity. This battery is only suitable for Acebeam P15 Defender.
  • The positive and negative poles of the Acebeam customized battery have the same polarity, and the battery has a strong discharge capacity. To avoid the risk of short circuit, the customized battery can only be charged in the flashlight currently. External chargers not available at moment.
  • Long-term storage in a low-temperature environment will affect battery capacity, it is better to store at normal temperature.
  • The built-in protection board to protect the over-discharge, overcharge, and short circuit.


  • ACEBEAM P15 Customized 18650 3100mAh Battery

    Product form

    650.00 ฿ Excl. VAT

      • Guaranteed secure & safe checkout.

        paypal
      • Free shipping on all orders nationwide
      • จัดส่งฟรีทั่วประเทศ

      Description

      แบตเตอรี่ ACEBEAM ARC18650H-310A IMR18650 3100mAh 3.6V 11.2WH สำหรับไฟฉาย ACEBEAM P15  จ่ายกระแสไฟที่ 20A  มีขั้วบวก ขั้วลบอยู่ในด้านเดียวกัน  (+/−  same-side terminal)

      มีวงจรป้องกัน (Internal PCB Protected) ควบคุมการทำงานของระบบ  ป้องกันการลัดวงจร ตัดการทำงานของแบตเตอรี่ เมื่อแรงดันไฟสูงเกิน 4.3±0.05V หรือแรงดันไฟในแบตเตอรี่ลดต่ำกว่า 2.5±0.1V

      แบตเตอรี่ติดตั้ง IC CHIPS MOSFETS x 4 ชุด (metal–oxide–semiconductor field-effect transistor) ควบคุมการจ่ายกระแสไฟในปริมาณมาก เพื่อให้อุปกรณ์ทำงานได้ประสิทธิภาพสูงสุด



      คุณสมบัติ:

      • แบตเตอรี่ออกแบบสำหรับไฟฉาย Acebeam P15 Defender ชาร์จไฟผ่านตัวไฟฉาย
      • ACEBEAM ARC18650H-310A IMR18650 3100mAh 3.6V 11.2WH จ่ายกระแสไฟที่ 20A
      • แบตเตอรี่มีขั้วบวก ขั้วลบอยู่ในด้านเดียวกัน (+/−  same-side terminal)
      • มีวงจรป้องกัน (Internal PCB Protected) ตัดการทำงานของแบตเตอรี่ เมื่อค่าแรงดันไฟสูงเกิน 4.3±0.05V หรือแรงดันไฟในแบตเตอรี่ลดต่ำกว่า 2.5±0.1V
      • ใช้ Core Cell คุณภาพสูงของ Samsung
      • ค่าความต้านทานในแกนเซลล์ (Internal Resistance) ≤50mΩ
      • อุณหภูมิระหว่างการชาร์จ10-45℃
      • อุณหภูมิระหว่างการใช้งานกับไฟฉาย: 15-60℃
      • มิติ : φ 18.6±0.3 mm ความยาว 69.4±0.3mm
      • น้ำหนัก: 49g
      • มาตรฐาน CE และ RoHs





    • The ACEBEAM customized battery has the same positive and negative polarity. This battery is only suitable for Acebeam P15 Defender.
    • The positive and negative poles of the Acebeam customized battery have the same polarity, and the battery has a strong discharge capacity. To avoid the risk of short circuit, the customized battery can only be charged in the flashlight currently. External chargers not available at moment.
    • Long-term storage in a low-temperature environment will affect battery capacity, it is better to store at normal temperature.
    • The built-in protection board to protect the over-discharge, overcharge, and short circuit.
